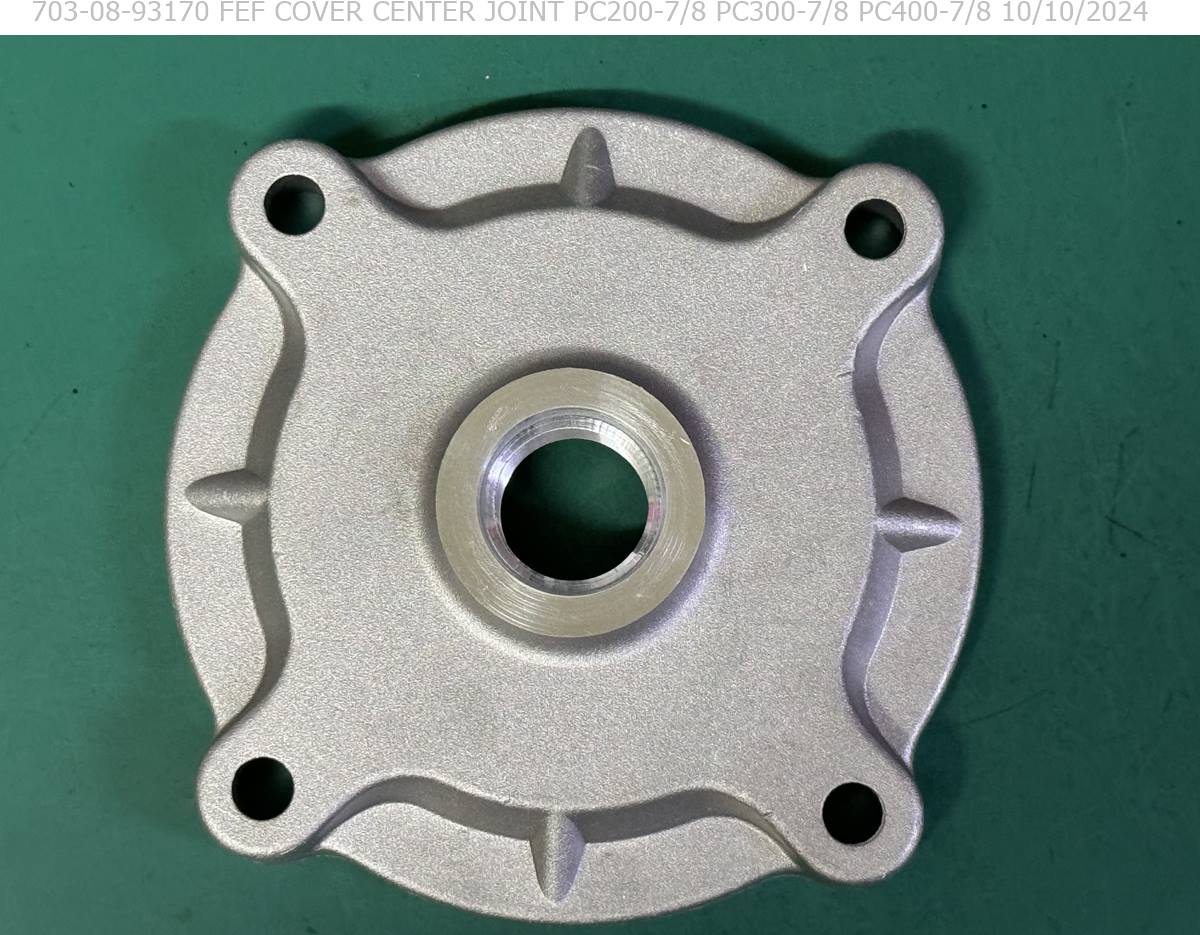

The center joint cover on a Komatsu PC200-7 excavator serves as a protective and structural component located over the center joint (also called the swivel joint or rotary manifold), which allows hydraulic fluid to pass between the upper and lower parts of the machine while the upper structure rotates. The center joint cover has several important functions:
Five Functions of the PC200-7 Excavator Center Joint Cover:
- Protects Hydraulic Components:
- Shields the swivel joint and hydraulic hoses from dirt, debris, and other contaminants that could cause wear or damage.
- Prevents Physical Damage:
- Acts as a barrier against impact from rocks, tools, or other external forces that may strike the underside of the machine.
- Supports Hose Routing:
- Provides structured paths or mounting points to secure hydraulic hoses, helping prevent kinks or rubbing that can lead to leaks.
- Enhances Safety:
- Covers moving hydraulic connections to reduce the risk of injury to maintenance personnel or operators during inspections or service.
- Improves Component Longevity:
- By preventing contamination and damage, it extends the lifespan of the center joint and related hydraulic components, reducing downtime.
Let me know if you’d like a diagram or parts breakdown to better understand its placement and role.
